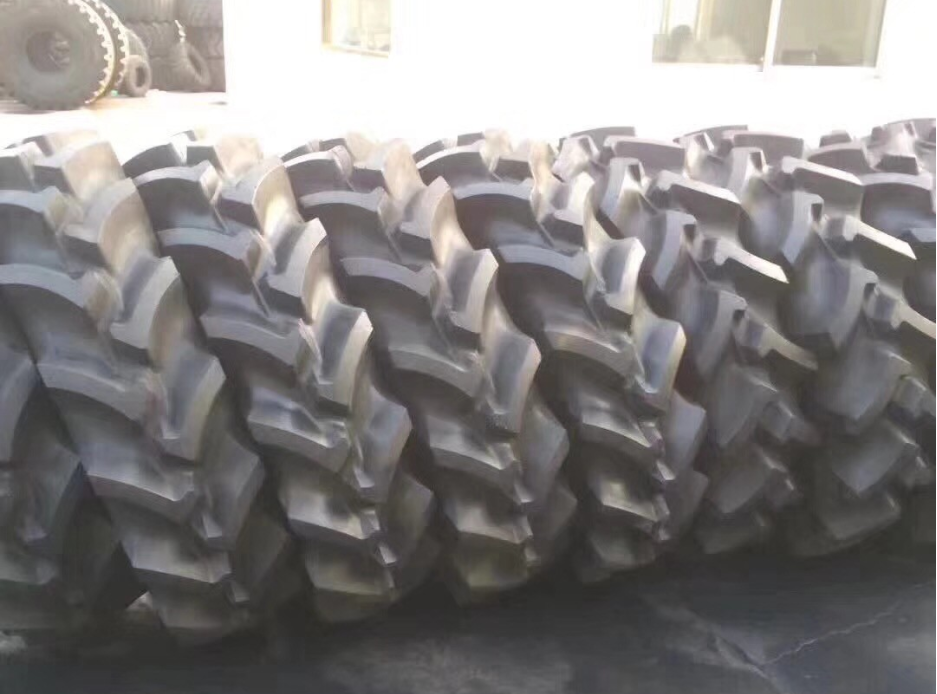

Atlapex R-2 pattern agricultural tires are designed to get excellent traction on wet and sticky soil with excellent self cleaning properties, preventing mud clogging between the lugs.
In order to get a better performance in the agricultural field. Atlapex team started to develop Supertrac from Jun 2013, and the moulds were ready two months ago, and the engineering team has done great efforts in compound both in the sidewall for preventing in weather cracking and the tread pattern to resist fast wear.
Now the available sizes are as following, welcome any suggestions and enquiries to admin@atlapextyre.com
| Size | PR | TRA Code | Rim & Flange Size | Tube Type | Inflated Dimensions (mm) | Load Capacity (kg) | Inflated Pressure (kpa) | |
| SW | OD | |||||||
| 12.4-24 | 12 | R-2 | W11 | TT | 315 | 1192 | 1415 | 230 |
| 12.4-28 | 12 | R-2 | W11 | TT | 350 | 1320 | 1900 | 220 |
| 12.4-38 | 12 | R-2 | W11 | TT | 315 | 1500 | 1600 | 220 |
| 13.6-38 | 12 | R-2 | W12 | TT | 345 | 1600 | 1910 | 210 |
| 14.9-24 | 12 | R-2 | W13 | TT | 378 | 1265 | 1760 | 180 |
| 14.9-28 | 12 | R-2 | W13 | TT | 378 | 1365 | 1880 | 180 |
| 14.9-30 | 12 | R-2 | W13 | TT | 398 | 1560 | 2190 | 230 |
| 16.9-30 | 12 | R-2 | W15 | TT | 430 | 1585 | 2455 | 200 |
| 16.9-34 | 12 | R-2 | W15 | TT | 430 | 1670 | 2605 | 200 |
| 18.4-30 | 12 | R-2 | W16 | TT | 467 | 1550 | 2815 | 230 |
| 18.4-34 | 12 | R-2 | W16L | TT | 467 | 1702 | 2990 | 180 |
| 18.4-38 | 12 | R-2 | W16 | TT | 467 | 1755 | 3165 | 180 |
| 19.5L-24 | 12 | R-2 | DW16 | TT | 495 | 1357 | 2415 | 210 |
| 20.8-38 | 12 | R-2 | W18L | TT | 530 | 1855 | 3475 | 160 |
| 20.8-42 | 14 | R-2 | W18A | TL | 528 | 1988 | 4128 | 220 |
| 23.1-26 | 14 | R-2 | DW20 | TT | 587 | 1662 | 3610 | 170 |
| 23.1-30 | 14 | R-2 | DW20 | TT | 587 | 1770 | 3850 | 170 |
| 23.1-34 | 14 | R-2 | DW21 | TT | 625 | 1870 | 4390 | 170 |
| 28L-26 | 14 | R-2 | DW25 | TT/TL | 715 | 1672 | 4250 | 170 |
