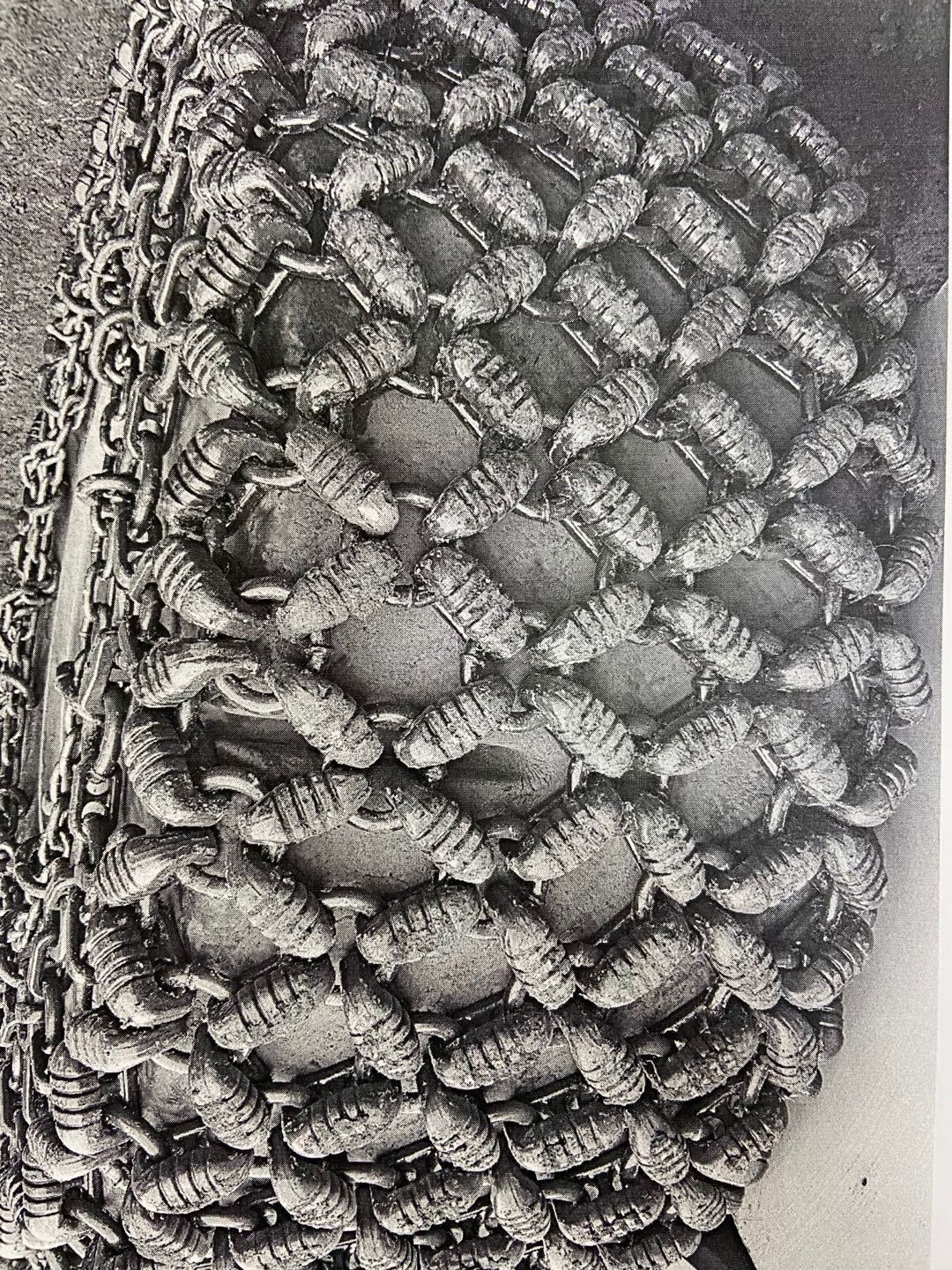

A Tire Protection Chain is is widely used on the tires which usually work in mining site, slag sites, and wastyard ect, for most time the tires always failed dut to the cut on its sidewall. ATLAPEX tires protection chain protects the tread and sidewalls of the tires to save your expensive tires and ensure a long working lift of the tires.
ATLAPEX 601 4X4, Which is specially designed for gaint loader tire which running in mining site , after heat treatment, the tire chain has more durable.
| ATLAPEX 4X4 601F Tire Chain for 45/65-45 | ||||||
| Chain Weight/Piece | 2946kg | |||||
| System | 4 link system,drop forged link connected with welded rings | |||||
| Mesh Opening | 80mm | |||||
| Link measurements: W/H/L | 50/74/111 mm | |||||
| Weight: | 1574g /link | |||||
| Wear Volume: | 840 g/link | |||||
| Links/m² | 114 | |||||
| Wear Volume/ m² | 85.6g | |||||
| Wear links/Chain | 890g | |||||
| Total Wear Volume/Chain | 861.1kg | |||||
| Ring | Φ20mm, cross section 316 mm², case hardened | |||||
| Material Link: | 40Cr Standard Steel Alloy | |||||
| Material Ring: | 20 CrMnTi Standard Alloy | |||||
| Hardening of link: | Through hardened with 630HV core and 750HV surface hardness, special hardening | |||||
| hardening depth of ring | 1mm ± 0.1mm | |||||
| Surface hardness ring | 750 HV | |||||
| Core hardness Ring: | 460 HV | |||||
